Core elements

A dashboard is a vertical list of full-width elements, and each element at the top level is a titlebar, a row, an accordion or a footer. Anything else, such as a group, a panel or a readout, sits inside one of these. This page describes the four top-level elements, the items property that nests elements, and the layout direction of rows, and the Motor Controller Dashboard Example shows them all in one dashboard.

The four top-level elements

The items list of dashboard: accepts only these four elements, and the order of the list is the order on screen.

A titlebar is the header of the dashboard, which typically holds status lamps, navigation menus and the component name, so it gives the dashboard its context and navigation.

Dashboard titlebar

A row is a layout container that holds components or groups and arranges them horizontally or vertically, so rows divide the dashboard into logical sections.

Row layout container

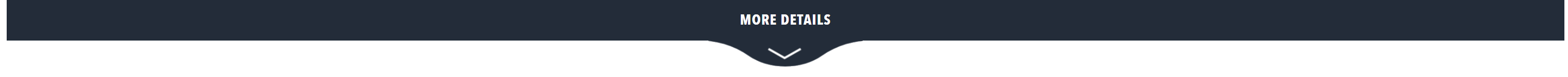

An accordion is a collapsible section that suits detailed information, settings, or secondary data that users open only when they need it, and it keeps the main dashboard focused on key information.

Accordion header

A footer is a bar at the bottom of the dashboard that the web interface can show or hide through a binding on its visible target. A menu added to the footer is not displayed, so the footer is not a place for navigation. Use a footer when the dashboard needs a bar that appears only under some conditions, and use the titlebar menu or an Action component for navigation and actions.

Dashboard footer bar

Nesting with items

The items property is an array that holds the child elements of a container, and it appears at almost every level of a dashboard: in dashboard, row, group, panel, accordion, and in containers such as pill, lamps, readouts and tabs. It is always an array, written with - list syntax even for one element, and the order of the array is the order on screen. A row holds groups and components, a group organises related components, a panel is a titled container, and the HTML and Image components display custom content.

dashboard:
  items:                    # Top-level items
    - row:
        items:              # Items within the row
          - group:
              items:        # Items within the group
                - readouts:
                    items:  # Items within the readouts container
                      - readout:
                          label: "Temperature"
                          value: 25.5

A larger dashboard nests in the same way:

Dashboard
├── Titlebar
├── Row (vertical)
│   ├── Group
│   │   ├── Component 1 (Readouts)
│   │   ├── Component 2 (Chart)
│   │   └── Component 3 (HTML)
│   └── Group
│       └── Component 4 (Image)
├── Accordion
│   └── Row
│       └── Components
└── Footer

Images, stylesheets and HTML templates for a dashboard are stored in the profile directories, which are named images, styles and content on disk and served from /Profile/Images, /Profile/Styles and /Profile/Content. Refer to Store dashboard files in a profile.

Layout directions

A row stacks its components vertically by default and arranges them side by side when direction: horizontal is set, and a group behaves the same way, so both layouts can be mixed within one dashboard.

dashboard:
  items:
    - row:
        direction: horizontal
        items:
          - readouts:
              items:
                - readout:
                    label: "Temperature"
                    value: 25.5
          - readouts:
              items:
                - readout:
                    label: "Pressure"
                    value: 1013

The complete motor controller dashboard for a Prohelion WaveSculptor22, which uses rows, groups, panels, an accordion and a tab, is listed and analysed in Motor Controller Dashboard Example. Data Binding shows how components take their values from tags, and Component Reference describes every component.
