Group component

A group is a container that keeps related components together, side by side or from top to bottom, inside a row or a panel. Groups create visual and logical groupings that keep a dashboard organised and easier to read.

When to use

Use a group to keep related data displays together as one section and to give them a shared width. A group stacks its items vertically unless direction is set to horizontal. Use a Row when the section needs a height instead of a width, or when it is a whole band of the dashboard and not a part of one.

Parameters

Parameter	Type	Required	Default	Description
`id`	string	No	None	Set as the `id` attribute of the group element
`class`	string	No	None	CSS class added to the group, alongside the horizontal or vertical layout class
`width`	string	No	None	Width in CSS format, for example `100px`, `50%` or `auto`
`direction`	string	No	`vertical`	Layout direction, `vertical` or `horizontal`. Items are stacked from top to bottom unless the value is `horizontal`
`items`	array	Yes	None	Components displayed in the group

Example

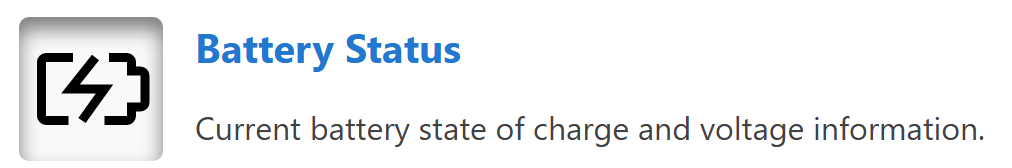

Horizontal group

A horizontal group arranges its components side by side. This example shows a horizontal group containing an icon and HTML content.

dashboard:
  items:
    - row:
        items:
          - group:
              direction: horizontal
              items:
                - icon:
                    image: nav_battery_active.svg
                    recess: true
                - html:
                    content: |
                      <div style="padding-left: 1rem;">
                        <div class="info-box__header">Battery Status</div>
                        <div class="info-box__content">
                          <p>Current battery state of charge and voltage information.</p>
                        </div>
                      </div>

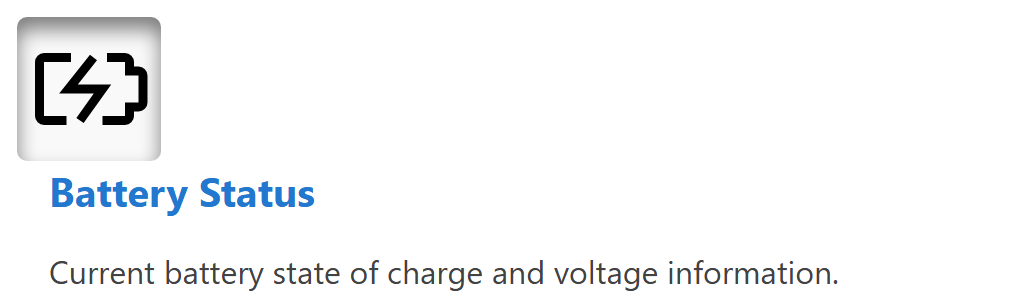

Vertical group

A vertical group stacks its components from top to bottom.

dashboard:
  items:
    - row:
        items:
          - group:
              class: "sensor-panel"
              direction: "vertical"
              items:
                - readouts:
                    items:
                      - readout:
                          label: "Pressure"
                          value: 1013.25
                          unit: "hPa"
                          precision: 2
                - chart:
                    type: "line"
                    value:
                      labels: ["00:00", "06:00", "12:00", "18:00"]
                      datasets:
                        - label: "Pressure Trend"
                          data: [1010, 1012, 1015, 1013]

Width example

The width of a group controls its horizontal footprint in rows and in panel content.

dashboard:
  items:
    - row:
        items:
          - group:
              width: "40%"
              direction: "vertical"
              items:
                - readouts:
                    items:
                      - readout:
                          label: "Pressure"
                          value: 1013.25
                          unit: "hPa"
                - html:
                    content: "<p>Summary details</p>"
          - group:
              width: "60%"
              direction: "vertical"
              items:
                - chart:
                    type: "line"
                    value:
                      labels: ["00:00", "06:00", "12:00", "18:00"]
                      datasets:
                        - label: "Pressure Trend"
                          data: [1010, 1012, 1015, 1013]
