Readouts component

Readouts display numerical or text values with units and precision, and they are the primary way to show sensor data, measurements, and other numerical information from the system.

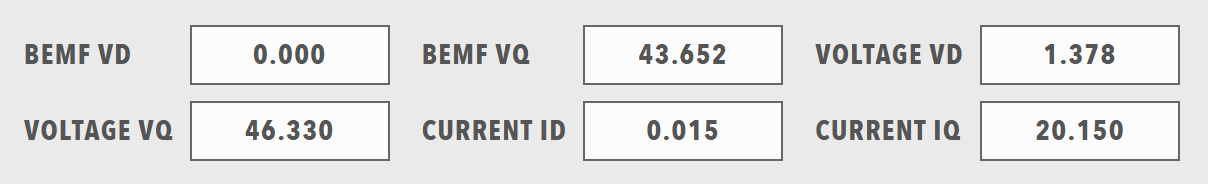

Readouts component showing numerical and text value displays

Use readouts for sensor readings, measurements, text information and other real-time values. Use a Chart when the trend matters more than the latest value, and a Table for a large set of related values.

Parameters

Parameter	Type	Required	Default	Description
id	string	No	None	Not used by the web interface
class	string	No	None	CSS class added to the readouts element
items	array	Yes	None	Array of readout items. Each item is displayed as one readout

Readout parameters

Each item in items must contain a readout object with:

Parameter	Type	Required	Default	Description
id	string	No	None	Not used by the web interface
class	string	No	None	Not used by the web interface
label	string	Yes	None	Caption of the readout. The caption can be bound with the label target, and it is underlined when action is set
value	number or string	No	None	Static value. The value is formatted with unit and precision. When no data is available, the readout shows -- and is displayed as stale
unit	string	No	None	Unit appended after a numeric value. When unit is omitted and the bound tag defines a unit in its metadata, the web interface fills in that unit. The unit can be bound with the unit target
precision	number	No	None	Number of decimal places for numeric values
width	integer	No	1	Number of columns that the readout spans, from 1 to 4. A value greater than 1 displays the readout as a wide readout
enabled	boolean	No	true	When false, the readout is displayed in the disabled style and remains visible. The state can be bound with the enabled target
visible	boolean	No	true	When false, the readout is hidden. The state can be bound with the visible target
bind	array	No	None	Data binding. The value, label, unit, enabled and visible targets are handled
action	string	No	None	Underlines the caption. Clicking the readout does not run an action
param	string	No	None	Not used by the web interface

Example

dashboard:
  items:
    - row:
        items:
          - readouts:
              items:
                - readout:
                    label: "Temperature"
                    value: 25.5
                    unit: "°C"
                    precision: 1
                    enabled: true
                    bind:
                      - target: value
                        source: 'DBC/TemperatureMeasurement/Value'
                - readout:
                    label: "Pressure"
                    value: 1013.25
                    unit: "hPa"
                    precision: 2
                    width: 2
                    enabled: true
                    bind:
                      - target: value
                        source: 'DBC/PressureMeasurement/Value'
