Pill component

A pill is a compact status display that shows several related values, arranged in groups, beside a central icon, which suits component status and key metrics.

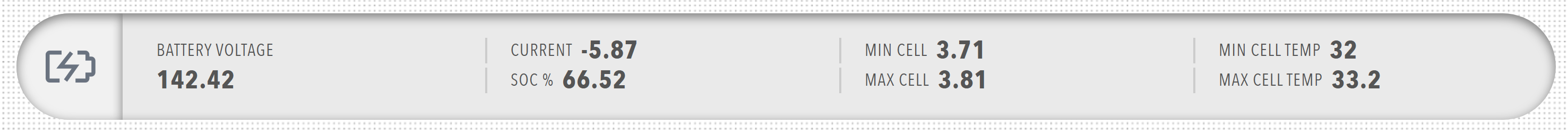

Pill component showing status display with icon and grouped readouts

When to use

Use a pill for component status and key metrics, where several related values sit beside one icon. Use Readouts when the values need no icon or grouping.

Parameters

Parameter	Type	Required	Default	Description
id	string	No	None	Not used by the web interface
class	string	No	None	CSS class added to the pill element
title	string	No	None	Heading at the top of the pill, before the icon and groups
icon	object	No	None	Icon shown at the left of the pill. When omitted, the icon area is left empty
items	array	Yes	None	Array of pill groups, laid out horizontally in order

Icon parameters

Parameter	Type	Required	Default	Description
image	string	No	None	Icon name such as BatteryCharging, an icon filename such as nav_battery_active.svg, or an image filename from the /Profile/Images directory. See Icon for the icon names
recess	boolean	No	false	When true, the icon is displayed in a recessed frame at a larger size
value	number	No	None	State of the icon between 0 and 1. The value only affects icons that change with state, and has no visible effect on an icon drawn from image
bind	array	No	None	Data binding for the icon. Only the value target is handled

Pill group parameters

Each item in the pill's items must contain a pillgroup object with:

Parameter	Type	Required	Default	Description
id	string	No	None	Not used by the web interface
class	string	No	None	Not used by the web interface
items	array	Yes	None	Array of value items

Pill item parameters

Each item in the pill group's items must contain a value object, which is a pill item, with:

Parameter	Type	Required	Default	Description
label	string	No	None	Caption shown beside the value. The caption can be bound with the label target
value	number or string	No	None	Static value. When no data is available, the pill shows -- and the item is displayed as stale
unit	string	No	None	Unit appended after a numeric value. The unit can be bound with the unit target
precision	number	No	None	Number of decimal places for numeric values
dotColor	string	No	None	Shows a status dot beside the value. Use success, warning or error for the dashboard theme colours, or any CSS colour value. Give the item a label as well, because colour alone does not state the status. The dot is not shown when hyperlink is set
hyperlink	string	No	None	When set, the value is displayed as a link. A path that starts with Profile/ resolves against the Profinity server
openHyperLinkInNewWindow	boolean	No	false	When true and hyperlink is set, the link opens in a new browser tab. The parameter has no effect without hyperlink
enabled	boolean	No	true	Not used by the web interface, because pill items are always displayed normally
visible	boolean	No	true	Not used by the web interface, because pill items are always displayed
bind	array	No	None	Data binding for the item. The value, label and unit targets are handled, and enabled and visible bindings are ignored

Example

dashboard:
  items:
    - row:
        items:
          - pill:
              title: MOTOR CONTROLLER
              icon:
                image: nav_motorcontrollers_active.svg
                recess: false
                value: 0
              items:
                - pillgroup:
                    items:
                      - value:
                          label: BUS VOLTAGE
                          unit: V
                          precision: 1
                          bind:
                            - target: value
                              source: 'DBC/BusMeasurement/BusVoltage'
                      - value:
                          label: BUS CURRENT
                          unit: A
                          precision: 1
                          bind:
                            - target: value
                              source: 'DBC/BusMeasurement/BusCurrent'
                - pillgroup:
                    items:
                      - value:
                          label: DSP TEMP
                          unit: °C
                          precision: 1
                          dotColor: warning
                          bind:
                            - target: value
                              source: 'DBC/DspBoardTempMeasurement/DspBoardTemp'
                      - value:
                          label: DOCUMENTATION
                          value: Open
                          hyperlink: https://www.prohelion.com
                          openHyperLinkInNewWindow: true
