Titlebar component

The titlebar is the header bar of a dashboard, with a status lamp and a toolbar of menu items that provide dashboard identification, status information, navigation, component-specific actions and settings dialogs.

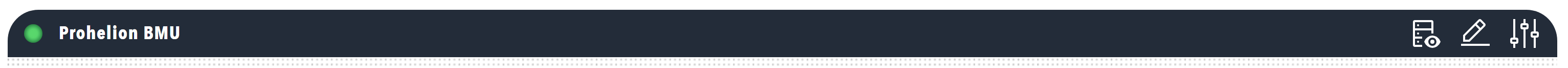

Dashboard titlebar component showing a status lamp and a menu toolbar

When to use

Use the titlebar for dashboard identification, a status indicator, navigation links, component-specific actions and settings dialogs. The menu of a titlebar can hold a modal item that opens a dialog.

Parameters

Parameter	Type	Required	Default	Description
id	string	No	None	Not used by the web interface
class	string	No	None	CSS class added to the titlebar element
lamp	object	No	None	Status lamp shown in the left group of the titlebar. Refer to Lamp
menu	object	No	None	Menu whose items are shown as icons in the toolbar at the right of the titlebar.
showTitlebar	boolean	No	true	When false, the titlebar background, the hamburger menu button and the lamp are hidden, and the toolbar remains visible on a transparent background
showActions	boolean	No	true	When false, the toolbar of menu items is hidden

When both showTitlebar and showActions are false, the titlebar is not displayed and takes no space.

Titlebar menu

Menu items in the titlebar

The titlebar displays every item of its menu as an icon, without the item caption, and each item type behaves as follows.

Item type	Behaviour in the titlebar
menuitem	Icon link that navigates to the navigate target when clicked. A lamp on the item is displayed beside the icon
action	Icon button that runs the action when clicked
toggle	Switch that runs the action when clicked
modal	Icon that opens a dialog when clicked: a settings dialog, an editor, the Change Password dialog, the Two-Factor Authentication dialog or the Profinity AI chat.
logo	Displayed in the same way as a menuitem, as an icon link to the navigate target
submenu	Icon that expands its child items inline in the toolbar when clicked. The location parameter is not used

A titlebar menu usually contains menuitem, action, toggle and modal items. The logo and submenu types suit the side menu, which displays menuitem, modal, logo and submenu entries and does not display action or toggle entries.

Example

dashboard:
  items:
    - titlebar:
        lamp:
          color: grey
          value: 1
          label: Prohelion BMU
          enabled: true
          bind:
            - target: color
              source: /Prohelion BMU/Properties/StatusColourText
              toType: string
        menu:
          items:
            - menuitem:
                image: nav_custom_active.svg
                imageAlt: Messages and Signals
                navigate: dbc?view=messages&componentIdFilter=Prohelion+BMU
            - modal:
                id: default
                image: dash_config.svg
                imageAlt: Change Settings
                settings:
                  update: true
                  reload: true
                  urlSettings: /api/v2/ActiveProfile/Component/Prohelion%20BMU/settings
