MCP Server

Profinity includes support for the Model Context Protocol (MCP), which allows AI assistants and other tools to interact with Profinity to query system data and metadata. The MCP server provides programmatic access to Profinity's component data, signal values, and metadata through a standardized protocol.

Table of Contents

What is MCP?

The Model Context Protocol (MCP) is a standardized protocol that enables AI assistants and other tools to securely access and interact with external data sources and services. In Profinity, the MCP server provides a way for AI tools to query CAN bus data, component information, and signal metadata without requiring direct API access.

Enabling MCP Server

To enable the MCP server in Profinity, you must configure it in the System Configuration:

  1. Navigate to the ADMIN tab
  2. Open System Configuration
  3. Find the Enable MCP Server option in the Application Configuration section
  4. Enable the option
  5. Save the configuration

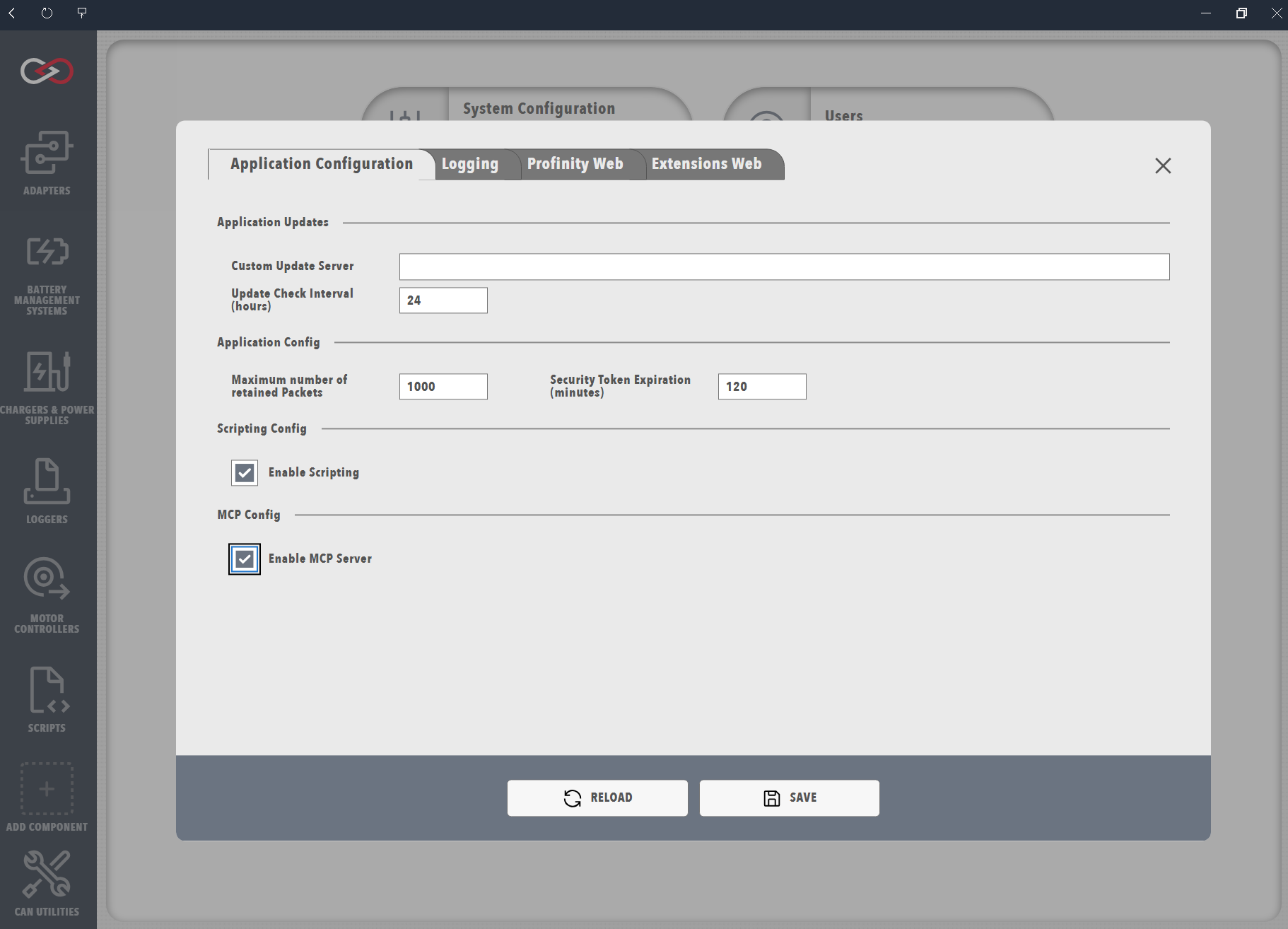

Enable MCP Server in System Configuration

System Configuration showing the “Enable MCP Server” setting

System Restart Required

Enabling or disabling the MCP server requires a Profinity restart. After saving the configuration, wait approximately 15 seconds for the engine to restart before reloading the page.

Once enabled, the MCP server will be available at the /sse endpoint using HTTP/SSE (Server-Sent Events) transport.

Transport

Profinity's MCP server uses HTTP/SSE (Server-Sent Events) transport for communication. The server endpoint is available at:

http://localhost:18080/sse

The exact URL depends on your Profinity web server configuration (port and protocol).

Available Tools

The MCP server provides the following tools for querying Profinity data:

get_all_components

Retrieves a lightweight list of all active component names in the Profinity system. Use this tool first to discover available components before querying detailed metadata or data for specific components.

Parameters: None

Returns: Collection of component names as strings

get_all_metadata

Retrieves the complete data dictionary for all components, messages, and signals in the Profinity system. This includes full signal metadata (units, ranges, data types, scaling factors, etc.).

Parameters:

Parameter Type Description
component optional Filter by component name (case-sensitive)
message optional Filter by message name (case-sensitive, requires component parameter)
signal optional Filter by signal name (case-sensitive, requires both component and message parameters)

Returns: Dictionary of components with their messages and signals, including full metadata

get_component_data

Retrieves DBC messages and signals for a specific component. Use this to get current signal values for a single component.

Parameters:

Parameter Type Description
component required Name of the component as defined in the active Profinity profile
allInfo optional (default: false) If true, includes full signal metadata (units, ranges, etc.)

Returns: Dictionary of messages and signals for the specified component

get_all_components_data

Retrieves DBC messages and signals for all active components in the Profinity system. Use this to get current signal values across all components at once.

Parameters:

Parameter Type Description
allInfo optional (default: false) If true, includes full signal metadata (units, ranges, etc.)

Returns: Dictionary of all components with their messages and signals

get_signal_value

Retrieves the current or historical time-series data for a specific DBC signal. Use this to get real-time values or query historical data from InfluxDB. For current values only, use get_component_data. For signal metadata, use get_all_metadata.

Parameters:

Parameter Type Description
component required Name of the component as defined in the active Profinity profile. Use get_all_components or get_all_metadata to discover available component names.
message required DBC message name containing the signal. Use get_all_metadata to discover available message names for a component.
signal required DBC signal name to retrieve. Use get_all_metadata to discover available signal names for a message.
store optional (default: "local") Data source - "local" for real-time CAN bus data (default), or "logged" for historical data from InfluxDB.
start optional Start time for historical queries in InfluxDB format (e.g., "-10m" for 10 minutes ago, "2024-01-01T00:00:00Z" for absolute time). Required when store="logged".
stop optional Stop time for historical queries in InfluxDB format (default: now). Use "0m" or omit for current time.
aggregationWindow optional Time window for data aggregation (e.g., "1m", "5m", "1h"). Only used with store="logged".
aggregationFunction optional (default: "max") Aggregation function - "max", "min", "mean", "sum", or "count". Only used with store="logged".

Returns: DataPointOrSeries with current value (if store="local") or historical time-series data (if store="logged")

Authentication

The MCP server requires authentication using JWT tokens. Users must have the SystemRead security role to access the MCP server endpoints.

To authenticate with the MCP server:

  1. Create a user account with the SystemRead role (or use an existing account with this role)
  2. Generate a JWT token for the user (via the Profinity API or user management interface)
  3. Include the token in the Authorization header when making MCP requests:
Authorization: Bearer YOUR_JWT_TOKEN_HERE

Service Accounts

For long-lived integrations like MCP servers, consider creating a service account with the SystemRead role and enabling "Token Never Expires" on the account. This ensures the token remains valid for the lifetime of the integration.

Configuration Examples

Python Example

import requests

PROFINITY_MCP_URL = "http://localhost:18080/sse"
SERVICE_ACCOUNT_TOKEN = "YOUR_JWT_TOKEN_HERE"

headers = {
    "Authorization": f"Bearer {SERVICE_ACCOUNT_TOKEN}",
    "Content-Type": "application/json"
}

# Get all components (discover available components)
payload = {
    "method": "tools/call",
    "params": {
        "name": "get_all_components",
        "arguments": {}
    }
}

response = requests.post(PROFINITY_MCP_URL, headers=headers, json=payload)
components = response.json()

# Get all metadata
payload = {
    "method": "tools/call",
    "params": {
        "name": "get_all_metadata",
        "arguments": {}
    }
}

response = requests.post(PROFINITY_MCP_URL, headers=headers, json=payload)
metadata = response.json()

# Get component data
payload = {
    "method": "tools/call",
    "params": {
        "name": "get_component_data",
        "arguments": {
            "component": "ComponentName",
            "allInfo": False
        }
    }
}

response = requests.post(PROFINITY_MCP_URL, headers=headers, json=payload)
component_data = response.json()

# Get signal value (real-time)
payload = {
    "method": "tools/call",
    "params": {
        "name": "get_signal_value",
        "arguments": {
            "component": "ComponentName",
            "message": "MessageName",
            "signal": "SignalName",
            "store": "local"
        }
    }
}

response = requests.post(PROFINITY_MCP_URL, headers=headers, json=payload)
signal_value = response.json()

# Get signal value (historical time-series)
payload = {
    "method": "tools/call",
    "params": {
        "name": "get_signal_value",
        "arguments": {
            "component": "ComponentName",
            "message": "MessageName",
            "signal": "SignalName",
            "store": "logged",
            "start": "-10m",
            "stop": "0m",
            "aggregationWindow": "1m",
            "aggregationFunction": "max"
        }
    }
}

response = requests.post(PROFINITY_MCP_URL, headers=headers, json=payload)
historical_data = response.json()

Use Cases

The MCP server is particularly useful for:

  • AI Assistants: Enabling AI tools to query Profinity data and provide insights
  • Data Integration: Integrating Profinity data with external analysis tools
  • Monitoring Systems: Querying system state and signal values programmatically
  • Automated Reporting: Generating reports based on current or historical data

Security Considerations

  • The MCP server requires authentication with a valid JWT token
  • Users must have the SystemRead role to access MCP endpoints
  • The MCP server provides read-only access to data (no write operations)
  • All requests are authenticated and authorized before processing
