Panel

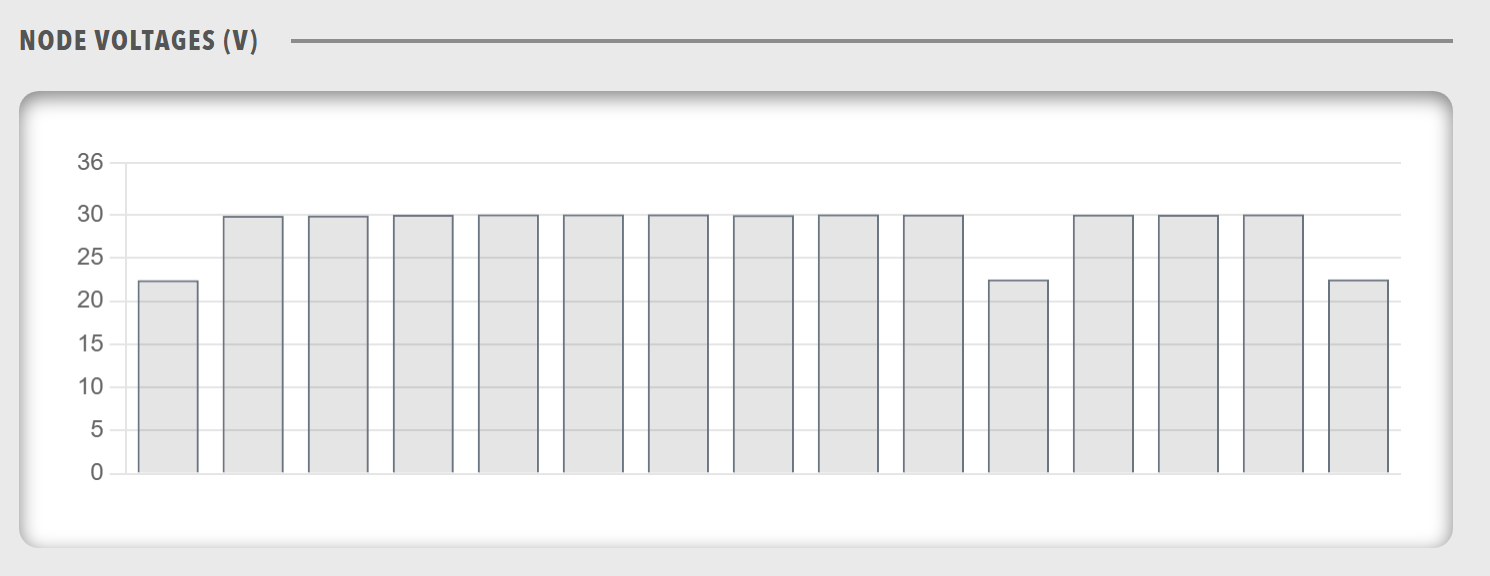

Individual panel within a panels grid. Each panel can contain various components and provides a titled container for organizing related content.
Best for: Individual data sections, titled content areas, organized information display
Parameters:
| Parameter | Type | Description |
|---|---|---|
id |
optional (string) | Unique identifier for the panel |
class |
optional (string) | CSS class for styling |
title |
required (string) | Panel title |
menu |
optional (object) | Menu configuration for the panel |
height |
optional (string) | Height value in CSS format (e.g., '100px', '50vh', 'auto') |
items |
required (array) | Components within the panel (chart, lamps, state, group, readouts, table, html) |
Basic Example:
dashboard:
items:
- row:
items:
- panels:
items:
- panel:
title: "Temperature Sensors"
height: "auto"
items:
- readouts:
items:
- readout:
label: "Sensor 1"
value: 22.5
unit: "°C"
precision: 1
- readout:
label: "Sensor 2"
value: 24.2
unit: "°C"
precision: 1
Menu Configuration Example:
Panels can include menu configurations for actions and navigation:
dashboard:
items:
- row:
items:
- panels:
items:
- panel:
title: "System Status"
menu:
items:
- menuitem:
label: "Refresh"
action: "refresh"
- menuitem:
label: "Settings"
navigate: "/settings"
- modal:
id: "panel-settings"
image: dash_config.svg
imageAlt: "Panel Settings"
settings:
create: false
update: true
delete: false
send: false
reload: true
showTabs: true
refreshOnClose: true
urlSettings: /api/v2/ActiveProfile/Component/{COMPONENT_NAME}/settings
items:
- lamps:
items:
- lampgroup:
items:
- lamp:
color: "green"
label: "Online"
value: 1
Height Variations:
Panels support different height configurations for flexible layouts:
dashboard:
items:
- row:
items:
- panels:
items:
- panel:
title: "Fixed Height Panel"
height: "200px"
items:
- chart:
type: "line"
value:
labels: ["Jan", "Feb", "Mar"]
datasets:
- label: "Data"
data: [10, 20, 30]
- panel:
title: "Viewport Height Panel"
height: "50vh"
items:
- table:
tableHeaders:
- header:
accessorKey: name
value: Name
value: []
- panel:
title: "Auto Height Panel"
height: "auto"
items:
- readouts:
items:
- readout:
label: "Value"
value: 42
Complex Nested Structures:
Panels can contain complex nested component structures:
dashboard:
items:
- row:
items:
- panels:
items:
- panel:
title: "Motor Controller Overview"
height: "auto"
menu:
items:
- menuitem:
label: "View Details"
navigate: "/component?componentId=Motor%20Controller"
items:
- group:
direction: "horizontal"
items:
- icon:
image: nav_motorcontrollers_active.svg
label: "Motor Controller"
- readouts:
items:
- readout:
label: "Bus Voltage"
precision: 1
bind:
- target: value
source: '{COMPONENT_NAME}.BusMeasurement.BusVoltage'
- readout:
label: "Bus Current"
precision: 1
bind:
- target: value
source: '{COMPONENT_NAME}.BusMeasurement.BusCurrent'
- chart:
type: "line"
legend: false
showControls: true
refreshInterval: 1000
bind:
- target: value
source: '[TimeSeries].{COMPONENT_NAME}.BusMeasurement.BusVoltage'
- lamps:
items:
- lampgroup:
items:
- lamp:
color: "green"
label: "Online"
bind:
- target: enabled
source: '{COMPONENT_NAME}.Status.Online'
toType: boolean
- lamp:
color: "red"
label: "Error"
bind:
- target: enabled
source: '{COMPONENT_NAME}.Status.Error'
toType: boolean
Complete Example with All Features:
dashboard:
items:
- row:
items:
- panels:
items:
- panel:
id: "main-panel"
class: "status-panel"
title: "System Status"
height: "60vh"
menu:
items:
- menuitem:
label: "Refresh Data"
action: "refresh"
- modal:
id: "panel-config"
image: dash_config.svg
imageAlt: "Configure Panel"
settings:
create: false
update: true
delete: false
send: false
reload: true
showTabs: true
refreshOnClose: true
urlSettings: /api/v2/ActiveProfile/Component/{COMPONENT_NAME}/settings
items:
- group:
direction: "vertical"
items:
- lamps:
items:
- lampgroup:
items:
- lamp:
color: "green"
label: "Online"
bind:
- target: enabled
source: '{COMPONENT_NAME}.Status.Online'
toType: boolean
- readouts:
items:
- readout:
label: "Temperature"
bind:
- target: value
source: '{COMPONENT_NAME}.Temperature.Value'
- chart:
type: "line"
bind:
- target: value
source: '[TimeSeries].{COMPONENT_NAME}.Temperature.Value'
