Pill

Status pill component with grouped readouts and icon. Pills provide a compact way to display multiple related values with a central icon, perfect for showing component status and key metrics.

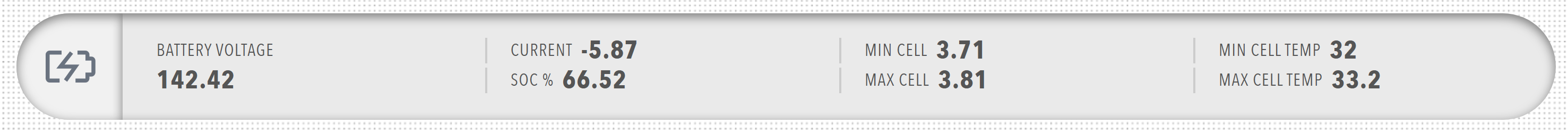

Pill component showing status display with icon and grouped readouts

Best for: Component status displays, key metric summaries, compact data presentation

When not to use: When you need individual readouts without grouping, or when you don't need an icon

Parameters:

Parameter	Type	Description
id	optional (string)	Unique identifier for the pill
class	optional (string)	CSS class for styling
icon	optional (object)	Icon configuration
items	required (array)	Array of pill groups

Icon Configuration:

Parameter	Type	Description
image	required (string)	Icon image filename from /Profile/Images directory
recess	optional (boolean)	Whether icon is recessed
value	optional (number)	Icon value
bind	optional (array)	Data binding for icon

Pill Group Structure:

Each item in items must contain a pillgroup object with:

Parameter	Type	Description
id	optional (string)	Unique identifier for the pill group
class	optional (string)	CSS class for styling
items	required (array)	Array of value items

Each value item must contain a value object (pill_item) with:

Parameter	Type	Description
label	required (string)	Display label
value	optional (number/string)	Static value
unit	optional (string)	Unit of measurement
precision	optional (number)	Decimal precision
enabled	optional (boolean)	Whether the readout is enabled
visible	optional (boolean)	Whether the readout is visible
bind	optional (array)	Data binding configuration

Example:

dashboard:
  items:
    - row:
        items:
          - pill:
              icon:
                image: nav_motorcontrollers_active.svg
                recess: false
                value: 0
              items:
                - pillgroup:
                    items:
                      - value:
                          label: BUS VOLTAGE
                          openHyperLinkInNewWindow: false
                          enabled: true
                          precision: 1
                          bind:
                            - target: value
                              source: '{COMPONENT_NAME}.BusMeasurement.BusVoltage'
                      - value:
                          label: BUS CURRENT
                          openHyperLinkInNewWindow: false
                          enabled: true
                          precision: 1
                          bind:
                            - target: value
                              source: '{COMPONENT_NAME}.BusMeasurement.BusCurrent'
                - pillgroup:
                    items:
                      - value:
                          label: DSP TEMP
                          openHyperLinkInNewWindow: false
                          enabled: true
                          precision: 1
                          bind:
                            - target: value
                              source: '{COMPONENT_NAME}.DspBoardTempMeasurement.DspBoardTemp'
