State

State machine visualization component. State components display the current state of a system using Mermaid flowcharts, showing state transitions and current position.

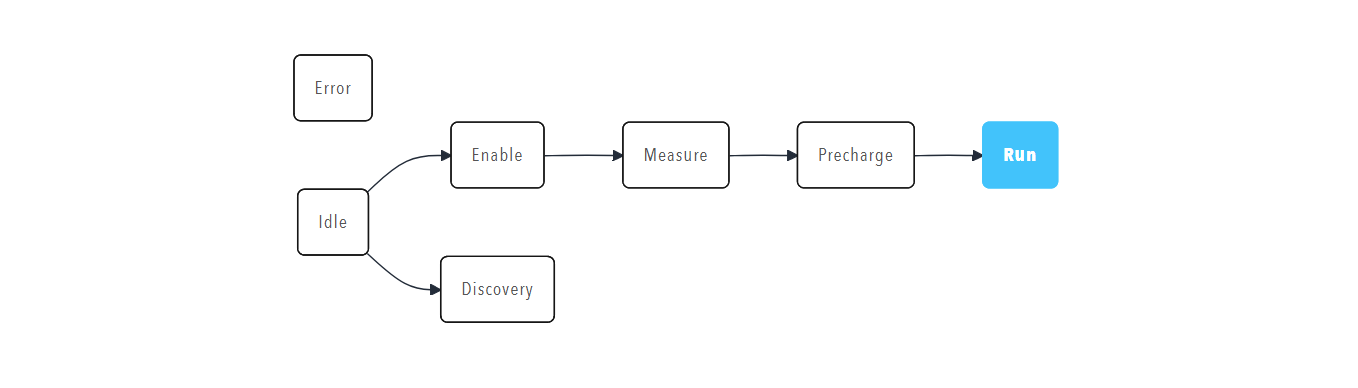

State component showing state machine visualization with Mermaid flowchart

Best for: System state visualization, process flow display, state machine representation, complex system status

Parameters:

Parameter	Type	Description
id	optional (string)	Unique identifier for the state component
class	optional (string)	CSS class for styling
label	optional (string)	Display label
model	required (string)	Mermaid flowchart definition
value	optional (string)	Current state value
enabled	optional (boolean)	Whether the state component is enabled
visible	optional (boolean)	Whether the state component is visible
bind	optional (array)	Data binding configuration

Example:

dashboard:
  items:
    - row:
        items:
          - state:
              model: "flowchart LR\r\n\tERROR(Error)\r\n\tIDLE(Idle)\r\n\tENABLE(Enable)\r\n\tDISCOVERY(Discovery)\r\n\tMEASURE(Measure)\r\n\tPRECHARGE(Precharge)\r\n\tRUN(Run)\r\n\tIDLE --> ENABLE\r\n\tIDLE --> DISCOVERY\r\n\tENABLE --> MEASURE\r\n\tMEASURE --> PRECHARGE\r\n\tPRECHARGE --> RUN\r\n"
              bind:
                - target: value
                  source: Prohelion BMU.[Property].State.Controller.CurrentState.Name
                  toType: string
