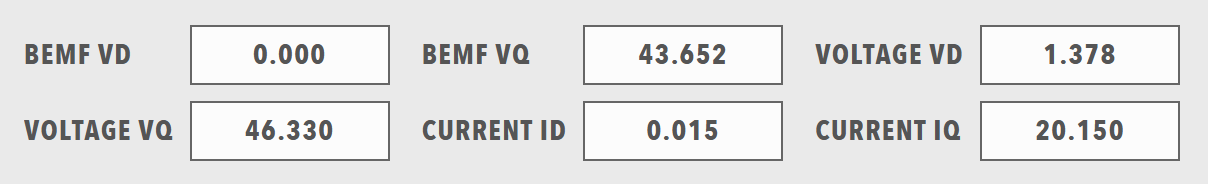

Readouts

Display of numerical or text values. Readouts are the primary way to show sensor data, measurements, and other numerical information from your system.

Best for: Sensor readings, measurements, numerical data display, text information, real-time values

Parameters:

Parameter	Type	Description
`id`	optional (string)	Unique identifier for the readouts component
`class`	optional (string)	CSS class for styling
`items`	required (array)	Array of readout items

Readout Item Structure:

Each item in items must contain a readout object with:

Parameter	Type	Description
`id`	optional (string)	Unique identifier for the readout
`class`	optional (string)	CSS class for styling
`label`	required (string)	Display label
`value`	optional (number/string)	Static value
`unit`	optional (string)	Unit of measurement
`precision`	optional (number)	Decimal precision for numerical values
`min`	optional (number)	Minimum value
`max`	optional (number)	Maximum value
`enabled`	optional (boolean)	Whether the readout is enabled
`visible`	optional (boolean)	Whether the readout is visible
`bind`	optional (array)	Data binding configuration
`action`	optional (string)	Action to perform on click
`param`	optional (string)	Parameter for the action

Example:

dashboard:
  items:
    - row:
        items:
          - readouts:
              items:
                - readout:
                    label: "Temperature"
                    value: 25.5
                    unit: "°C"
                    precision: 1
                    enabled: true
                    bind:
                      - target: value
                        source: '{COMPONENT_NAME}.TemperatureMeasurement.Value'
                - readout:
                    label: "Pressure"
                    value: 1013.25
                    unit: "hPa"
                    precision: 2
                    enabled: true
                    bind:
                      - target: value
                        source: '{COMPONENT_NAME}.PressureMeasurement.Value'
