File / SFTP Based Loggers

File loggers in Profinity are used to log native CAN bus messages to a file, that can then be either stored locally or transmitted remotely to a SFTP server.

Modes of Operation

File based loggers in Profinity have three potential modes of operation, you can either

Log Mode	Details
Log Locally to Disk	Writes the log files to your local file system.
Log Remotely via SFTP	As per FTP, but this time a Secure (SFTP) end point is used as the destination.

Depending on the item you select, Profinity will present you with different destination options. For SFTP it is necessary to provide the destination server, username and password. For local logging only a directory is required.

The logger also gives you the ability to manage Archive and Compression settings, if you wish to archive your messages you must provide an archive directory.

Setting	Purpose
Compress Logs	Once a log file has reached the size limit, then it is compressed.
Archive Old Logs	Older log files are rotated to an archive directory based on a rotation policy
Limit Archive Size To	Maintains a maximum number of log files at this number, older logs are deleted

Finally the logger allows you to set the frequency of rotation. Rotation means that the old log file is closed and a new one is created and Profinity allows you to define a minute based log rotation or a size base log rotation depending on your preference.

Logging configurations are stored as part of your profile so when you load a profile, if you have the logger setup to automatically start then it will start logging automatically.

Downloading the Logged Files

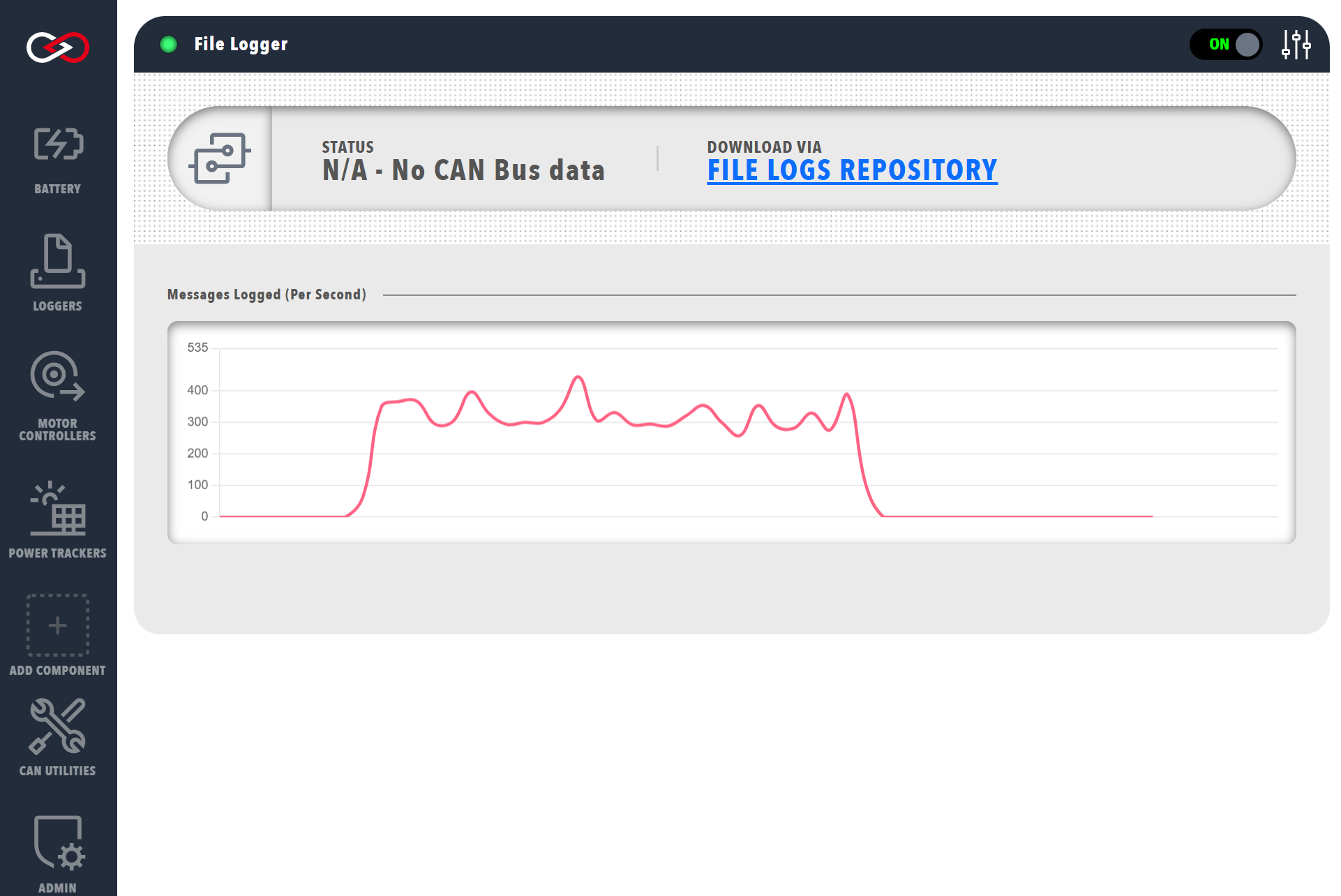

Once a CAN bus file has been created it can be downloaded from Profinity by clicking on the link found on the Logger Dashboard

Download Log File
